Quick Specifications
|
|
|
|
|
|
|
|
|
Manufacturer Specifications
1) Compliant Standard: TIA-568-C.2-2009, TIA-568.2-D-2018, ANSI/TIA-568-C.2-1
2) Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, 10GBaseT, PoE, PoE+
3) Conductor Type: BC 4*2*26AWG (7*0.16mm) OFC(Oxygen Free Copper)

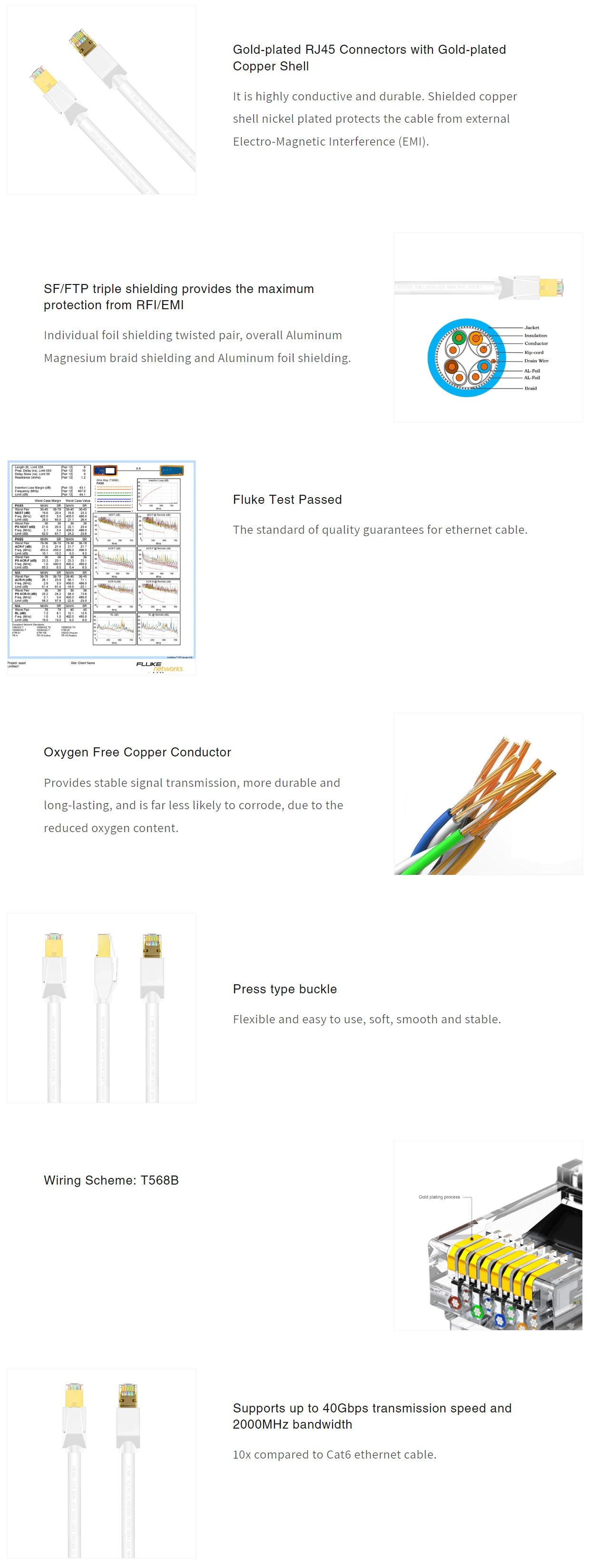

4) Shielding Types: SF/FTP (S/STP) Triple Shielding (individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding)

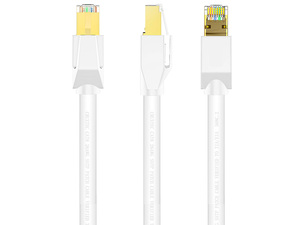

5) Connectors: Gold-plated RJ45, Gold-plated copper shell
6) Transfer Rate: up to 40Gbps
7) Bandwidth: up to 2000MHz
8) Sheath: Eco flexible PVC
9) Insulation: HDPE
10) Outside Diameter: 7±0.3mm
11) PoE: up to 30W
